Fastpack LS22

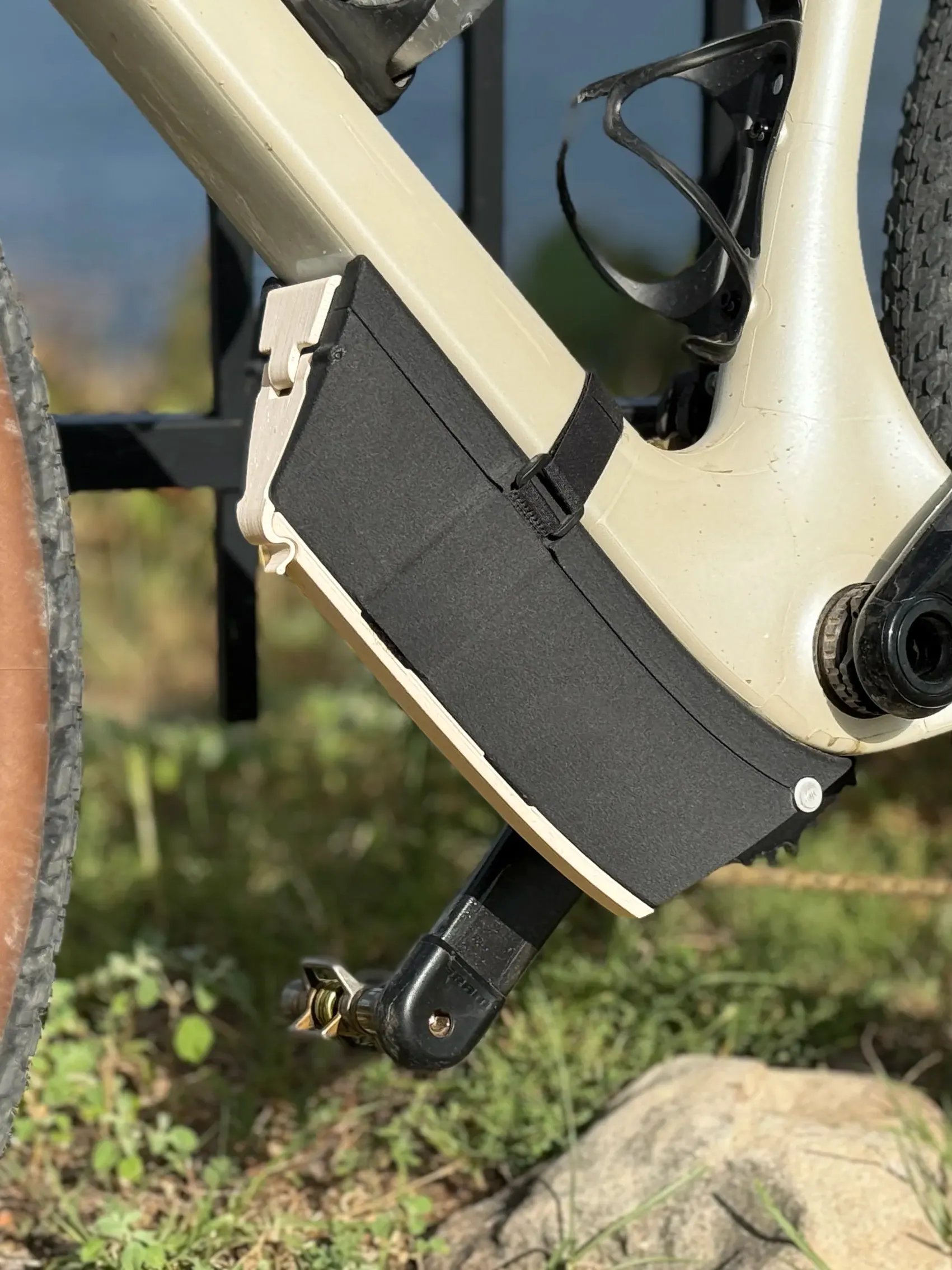

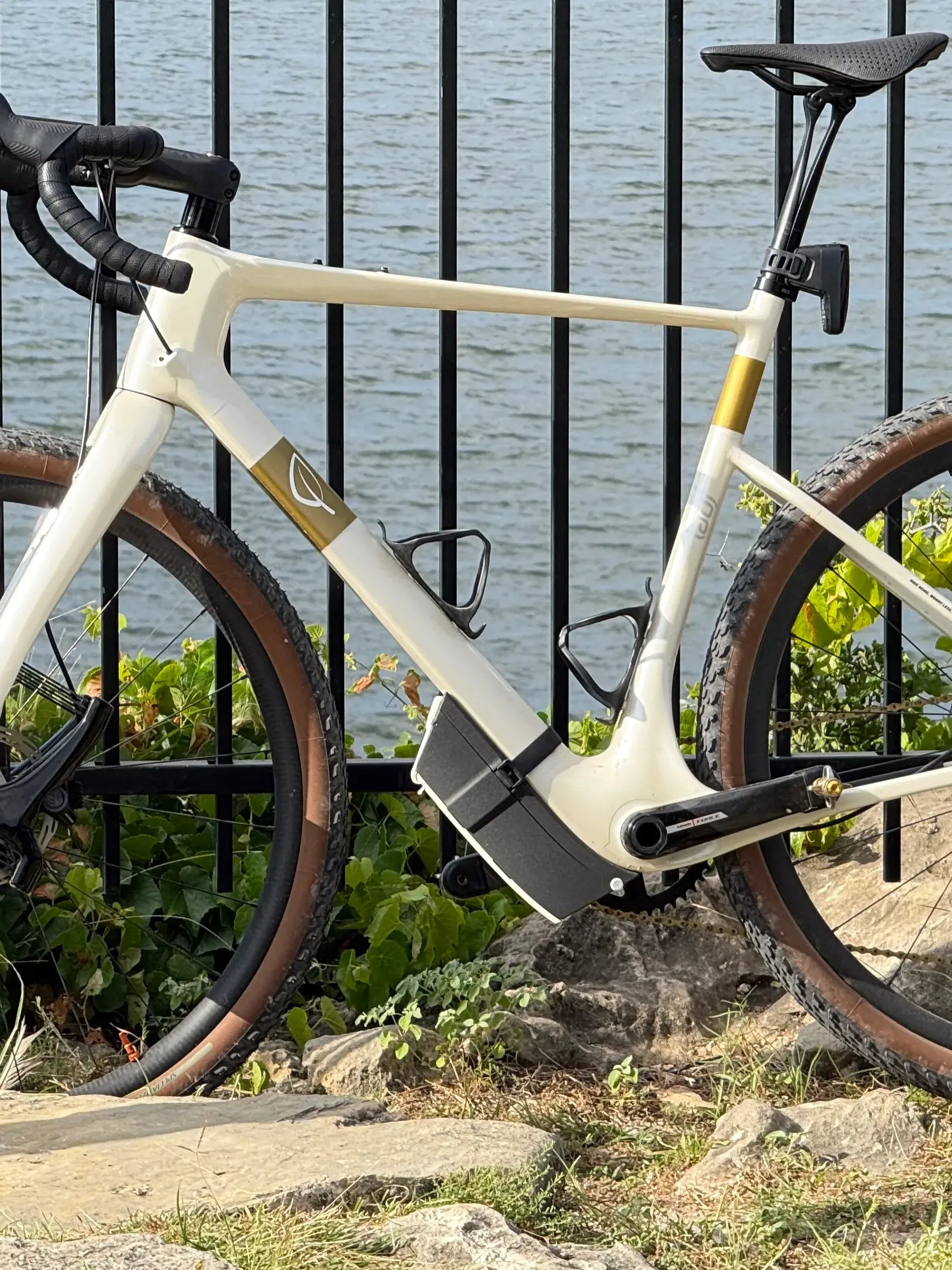

Specifically engineered for the 2022–current generation Lauf Seigla gravel frame. The Fastpack LS22 integrates seamlessly into the lower down tube contours, transforming the underside down tube bosses into a high-capacity, aerodynamic, and completely silent tool & parts storage system.
More details
-
Frame Specific: Tailored precisely to the Lauf Seigla frame silhouette.
-

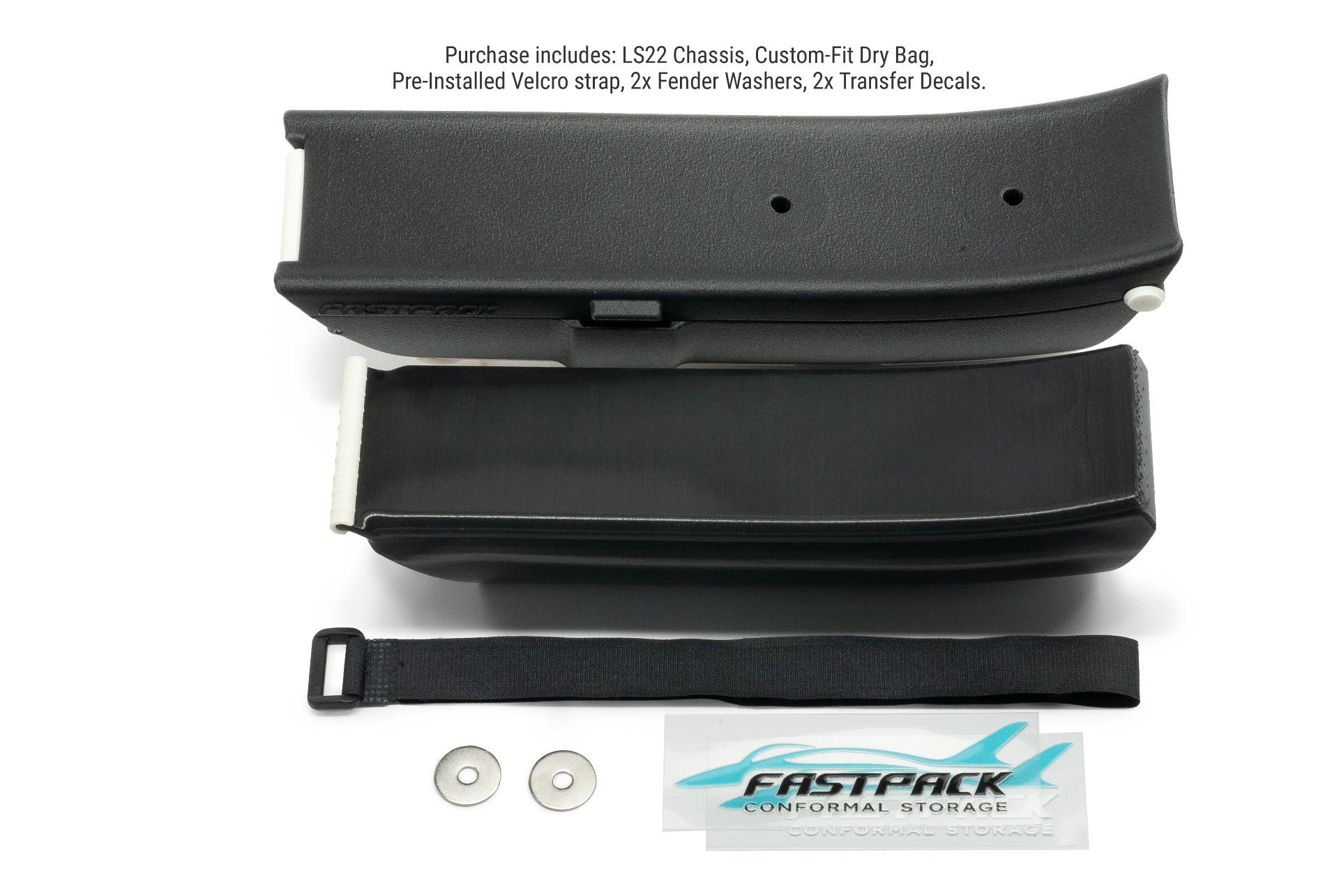

In the Box: Includes high-performance composite chassis, custom TPU dry bag, marine-grade mounting hardware and velcro cinch strap.
-
The Polished Guarantee: Backed by a comprehensive 2-year structural warranty and a hassle-free 30-day return policy.
Key Features
-
Conformal Aerospace Silhouette: Designed around the aerodynamic principles of fighter-jet Conformal Fuel Tanks, matching the native contours of the Seigla frame to minimize aerodynamic drag.
-
Integrated Stealth Velcro Tunnel: A fully internal routing channel that completely conceals the frame-wrap strap. It eliminates "strap-on" aesthetic afterthoughts, ensures absolute secondary retention, and relieves physical stress on your down tube water bottle bosses.
-

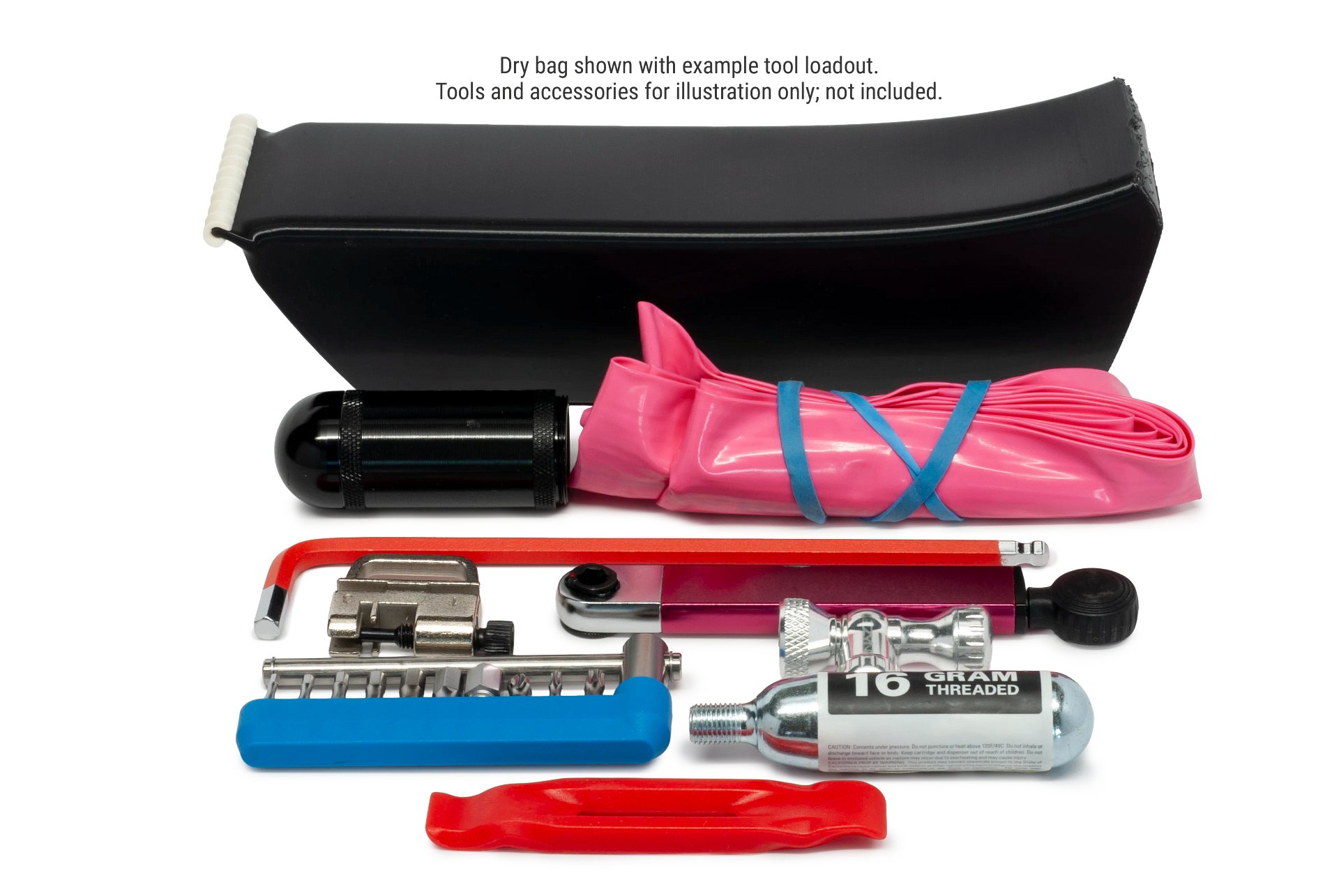

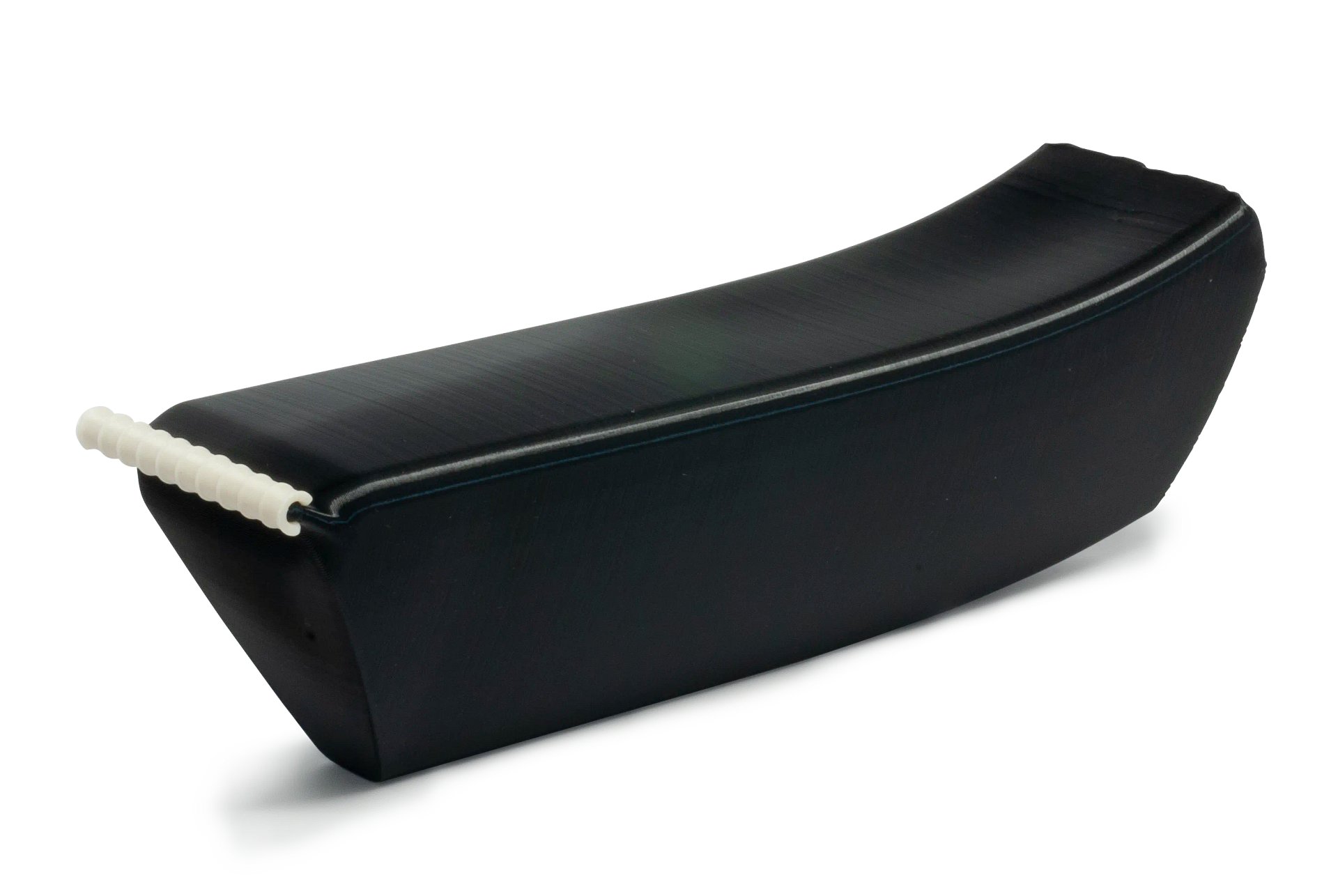

Anti-Rattle TPU Dry Bag: Includes a custom-fitted, waterproof TPU dry bag that isolates your tools from rain, mud, and stream crossings. The performance polymer acts as an internal dampener, completely silencing tools over rough washboard gravel.
-

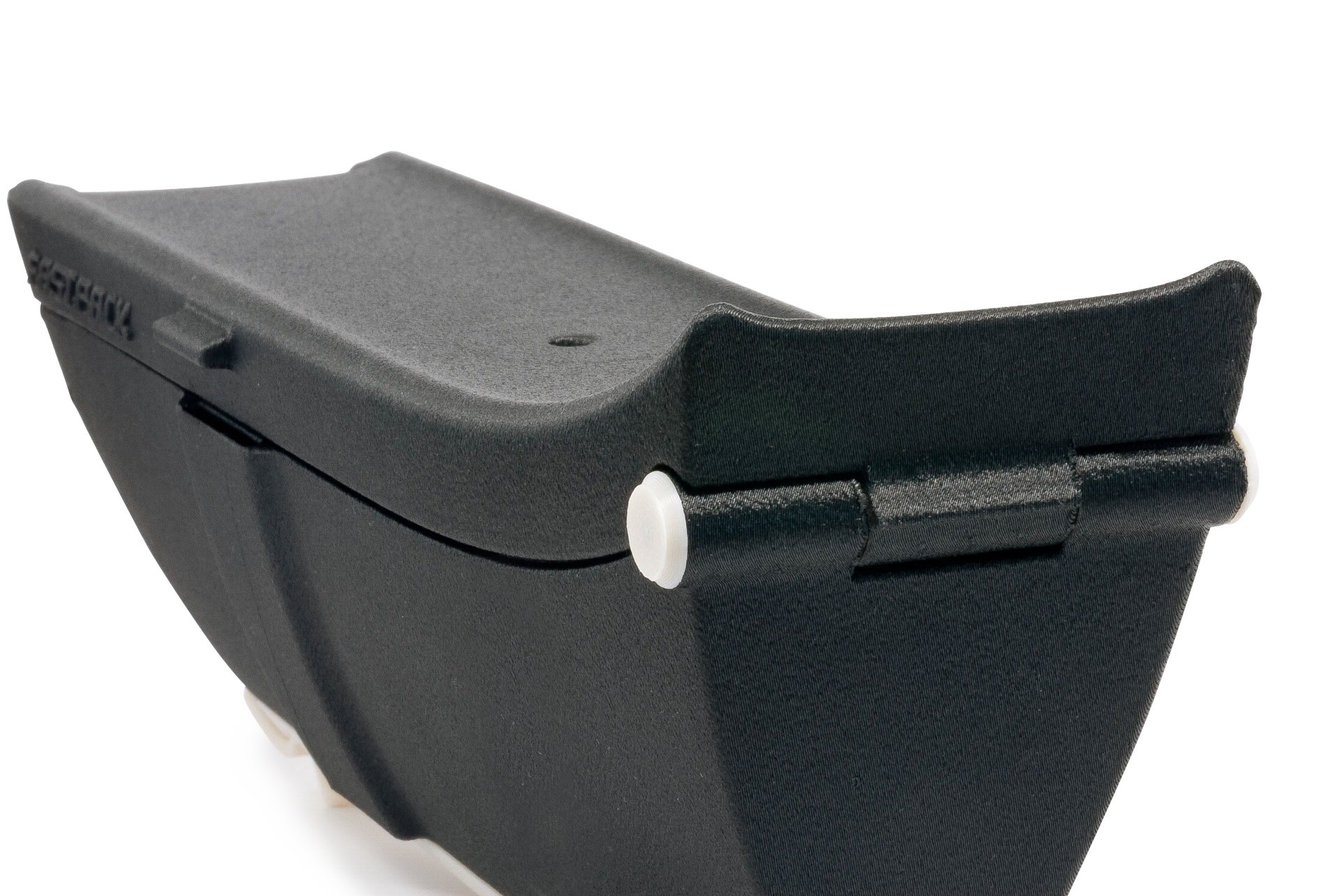

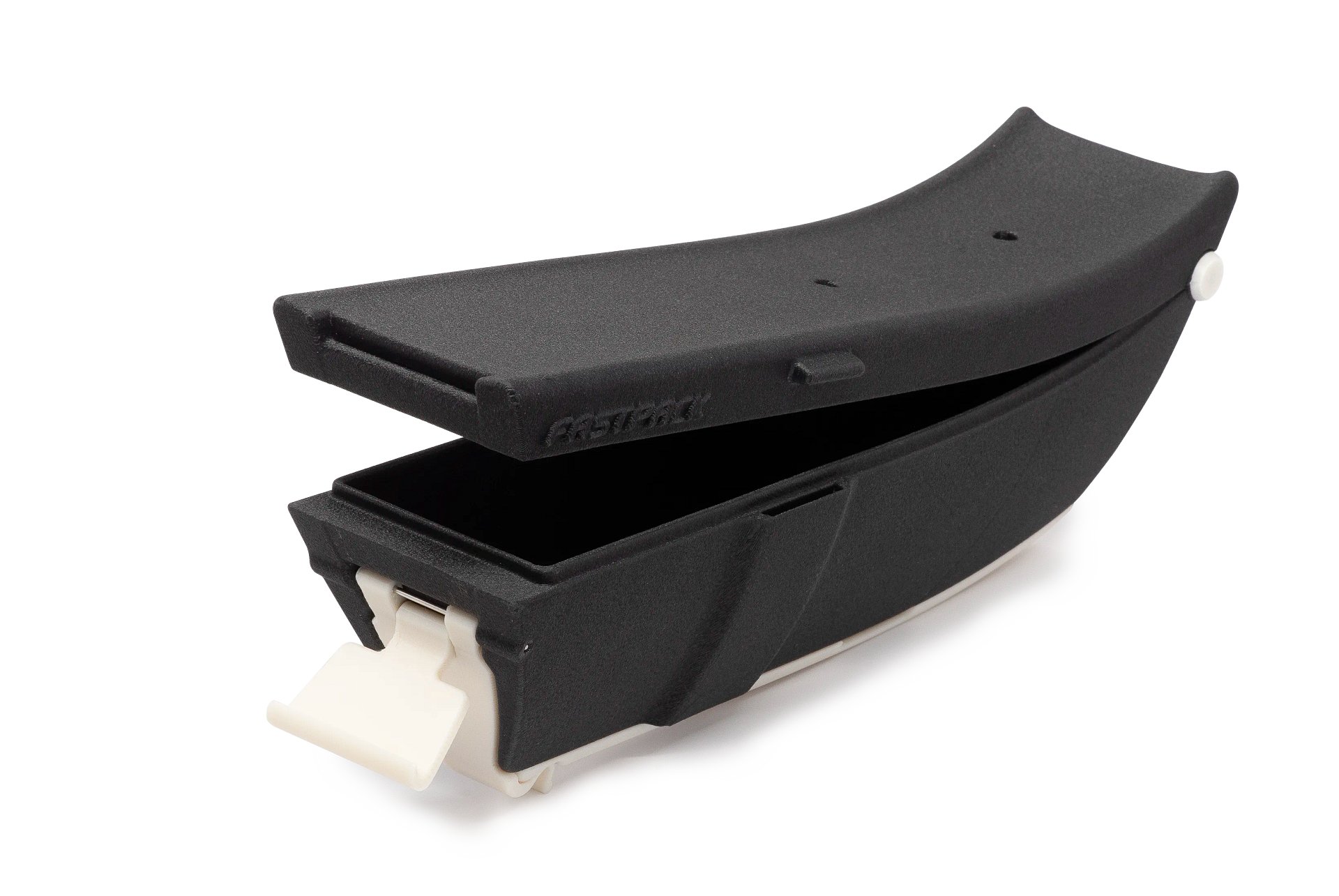

Dual-Material Architecture: Precision-manufactured from UV-resistant engineering-grade ASA-Carbon Fiber (ASA-CF) for a high-strength, matte-carbon finish, coupled with marine-grade stainless steel hardware at critical mechanical pivot points.
Technical Specifications
Size Medium (Large Capacity):
- Chassis Weight: 185g | Dry Bag Weight: 88g
- Dimensions: 270MM (L) x 100MM (W) x 70MM (H)
Size Small (Compact Capacity):
- Chassis Weight: 171g | Dry Bag Weight: 70g
- Dimensions: 240MM (L) x 100MM (W) x 70MM (H)
Verify Tire Clearance

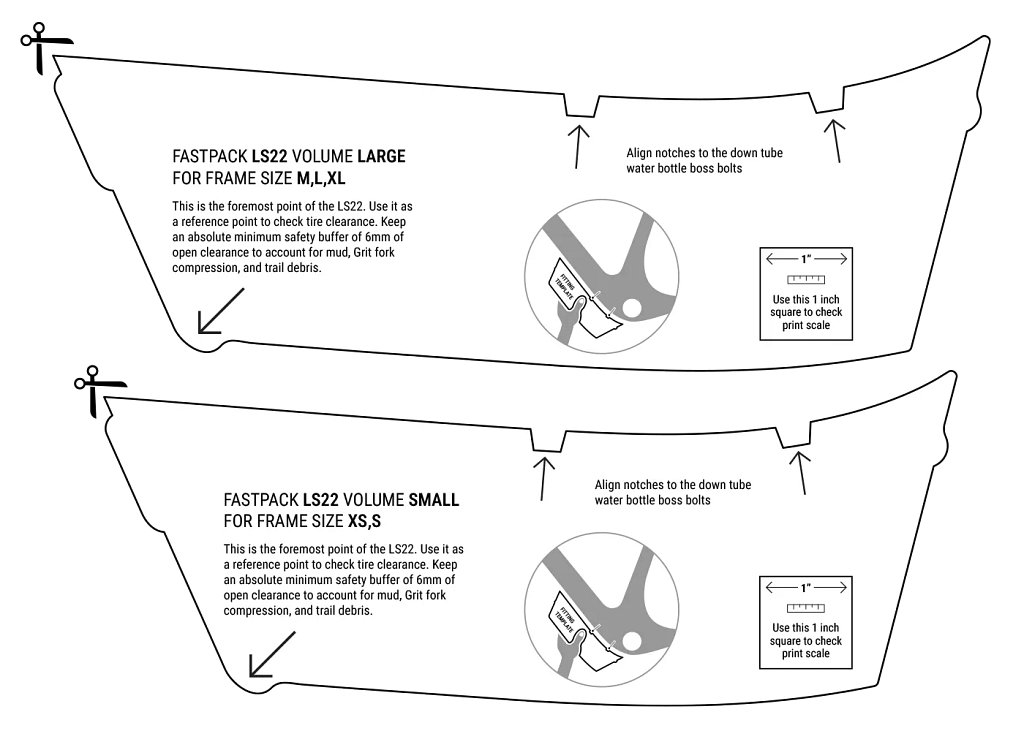

Gravel setups are highly individual. Tire choice, rim widths, and running pressures heavily alter your tire's actual inflated profile. To guarantee absolute safety and a perfect clearance fit before you purchase, use our 1:1 scale printable fit template.
Step-by-Step Instructions:
-
Download & Print: Click the link below to download the one-sheet PDF template. Print it at 100% Scale (Actual Size) on standard US Letter paper. Tip: Set your printer margins to "Minimum" to ensure the sheet edges aren't cropped.
-
Verify Scale: Before cutting, use a physical ruler to measure the calibration box(1"x1") printed on the paper to confirm your printer didn't auto-shrink the page.
-
Cut Out: Use scissors to cleanly cut out the profiles for the Size Small or Size Large outlines.
-
Test the Fit: Align the two marked mounting notches on the paper cutout directly against the existing lower down tube bottle bosses on your Lauf Seigla frame.
-
Check Clearance: Visually check the clearance gap between the front edge of the paper template and your front tire. We recommend an absolute minimum safety buffer of 6mm of open clearance to account for mud, Grit fork compression, and road debris.
Installation Guide & Liability Disclaimer
Important Carbon Frame Safety Information: The Fastpack LS22 is engineered specifically to integrate cleanly with the native frame bosses on the lower down tube. Improper installation can cause irreparable damage to your bicycle frame. Please read and adhere to the following mechanical guidelines before mounting your system:
-
Torque Specification: Hand-tighten all mounting hardware using a calibrated torque wrench. Do NOT exceed 2Nm of torque. Over-tightening can cause carbon frame distortion, crush damage, or cause the internal frame rivnuts/bosses to loosen or spin freely.
-
Installation Method: Carefully align the fasteners by hand first to prevent cross-threading. Do NOT use automated impact drivers or power tools under any circumstances. We strongly recommend applying a light layer of standard bicycle grease or a low-strength (purple) thread-locking compound to the bolt threads to prevent binding.
Limitation of Liability: By purchasing and installing the Fastpack LS22, you acknowledge and agree that installation is performed entirely at your own risk. Polished Goods, LLC assumes no liability for direct, indirect, incidental, or consequential damages to your bicycle frame, components, carbon structures, or accessories resulting from improper installation, over-torqued hardware, or failure to follow these specifications.
Frequently Asked Questions
Fit & Geometry
Will the LS22 fit other gravel bike brands? No. The LS22 is an ultra-precise, conformal design mapped strictly to the physical geometry and tube contours of the 2022+ Lauf Seigla. It will not fit other frames. (For updates on upcoming bike-specific geometries, subscribe to our fresh drop notification below).

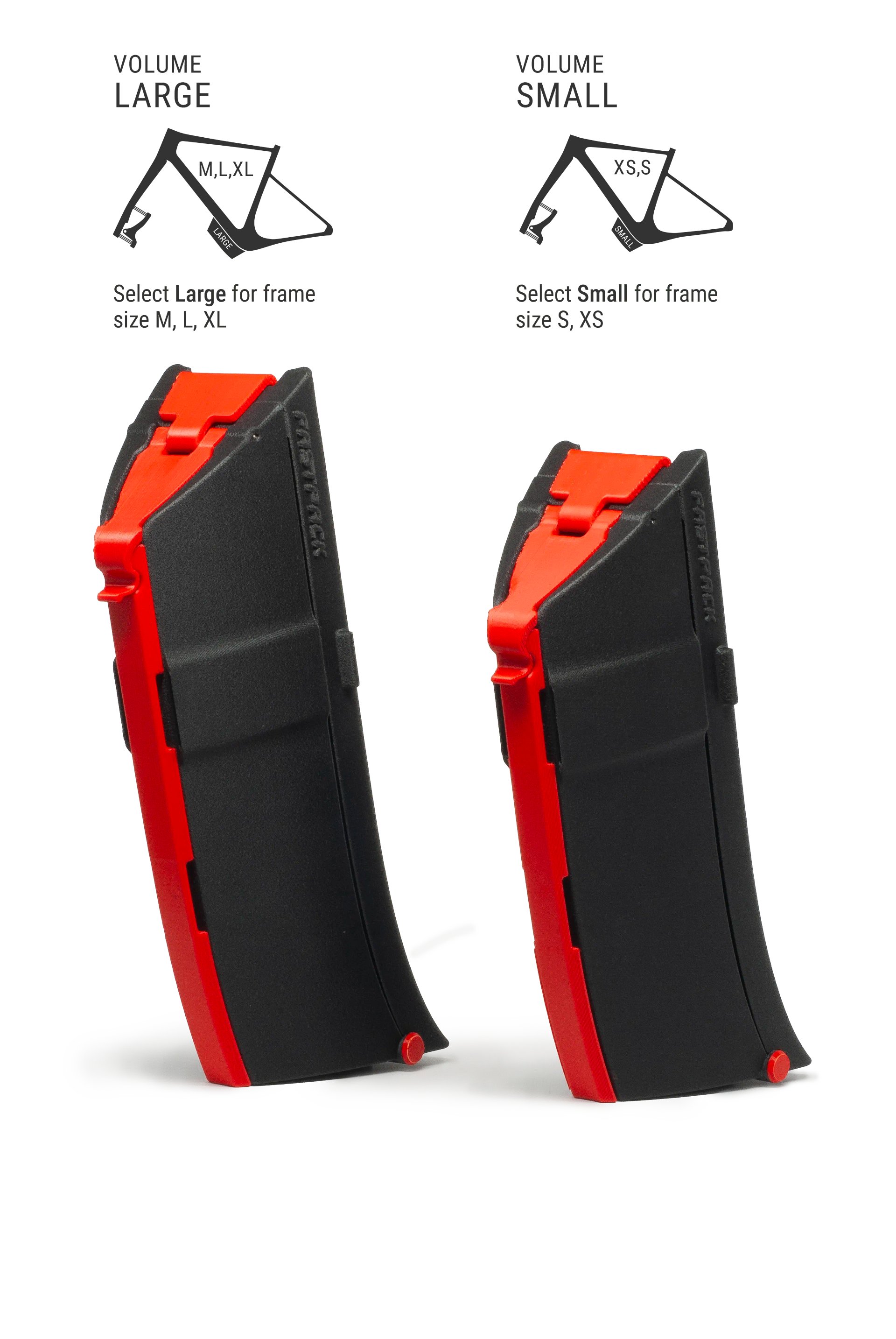

Which size should I choose for my Lauf Seigla?
-
Choose Size Small if you ride an Extra Small (XS) or Small (S) Seigla frame. This ensures maximum clearance between the bottom of the chassis and your front tire under full suspension compression.
-
Choose Size Large if you ride a Medium (M), Large (L), or Extra Large (XL) frame.
Durability & Performance
What happens if I strike a rock or a log? Is ground clearance an issue? We engineered the LS22 to be incredibly robust. The lowest physical point of the chassis sits at the exact same running height as a standard 40T chainring—the absolute smallest chainring choice used in modern gravel drivetrains. If you run a standard 44T or 46T ring, your drivetrain actually sits lower than the Fastpack. In practice, the high-strength ASA-Carbon Fiber body behaves like an aerodynamic bash guard for your frame's bottom bracket junction.
Does the container rattle or vibrate when riding rough singletrack? Absolutely not. Trail noise is eliminated through two mechanical layers: Externally, the integrated wrap-around velcro tunnel clamps the entire chassis flush against the down tube, removing all independent movement. Internally, the specialized TPU dry bag cradles your tools and acts as a physical shock-absorber against the interior walls.
Warranty & Logistics
What is your warranty and return policy? We stand behind our engineering. Every Fastpack is covered by a 2-Year Structural Warranty covering manufacturing defects or structural material failures under normal riding conditions. Additionally, we offer a 30-Day Hassle-Free Return Policy—if it doesn’t meet your expectations upon unboxing, ship it back in its original packaging for a full refund.
Do you ship internationally?
Currently, we only ship within the United States. If we expand shipping to international destinations (including Canada) in the future, please note that orders may be subject to local import duties, taxes, and carrier brokerage fees. These charges are the sole responsibility of the recipient and are collected by the carrier at the time of delivery.
